This animal feed pellet machine is a type of single screw extruder equipment, with a wide range of applications, can produce animal feed pellets of different shapes for various animals such as dogs, cats, fish, birds, shrimp, etc. After mixing the proportionally prepared raw materials evenly, put them into the extruder machine to get feed pellets.
Raw Materials
Soybean meal, wheat flour, maize powder/ corn meal, cottonseeds meal, bone meal, fish meal, etc. can be used as raw materials for making animal feed pellets.
Firstly, use a hammer mill crusher to crush the raw material into powder or flour, fineness around 60-80mesh. Secondly, mix the powder evenly by a feed mixer machine, control the moisture of the mixed powder at 20% -25%.
Pet Food
The animal feed pellet machine can make different shapes of food pellets for pets like dog, cat, rabbit, pet bird, etc.

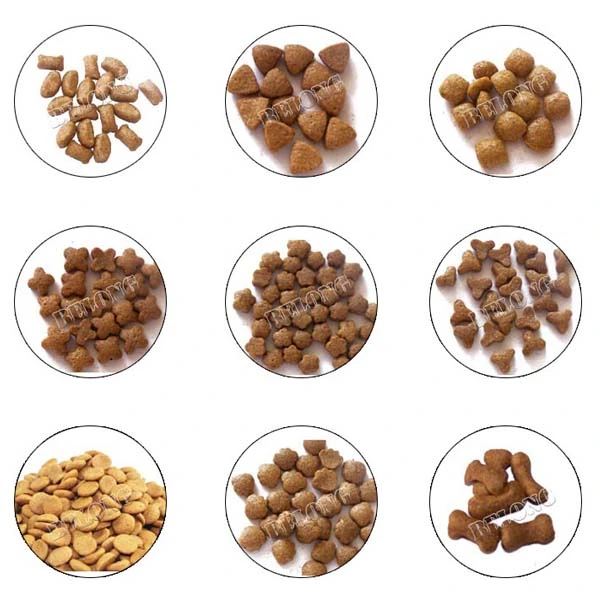

As shown in the figure on the right, there are some common shapes available for customers to choose from, such as triangular shape, cross shape, round shape, bone shape. Just need to replace different molds.
Aquatic Feed
This machine is also known as a professional aquatic feed machine for fish, crab, catfish, shrimps.
The final fish feed pellets have good taste and high nutrition. The floating time (12 to 24 hours) on water surface can be adjusted by the extrusion degree.
The diameter of final fish feed pellets is 0.9mm to 12mm, suitable for different fish with different size. So the machine is an ideal equipment for both small and medium fish farm holders or fish feed processing plants.
Features
- It adopts auto-controlling speed feeding device; By adjusting the cutting speed of the forepart knife to get pellets of different length.
- This extruder machine can produce both small round pellets and pet food pellets of different shapes only by changing molds.
- The fish feed pellet size can be from 0.9-20mm. The floating time is around 12-24 hours, which varies by formula and puffing degree adjustment. The feed is very catering and easy to be digested for aquatic animals, especially fish.
- High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections, etc.
Models & Parameters
| Model | Capacity | Main power | Screw Dia. |
|---|---|---|---|
| 60 | 120-150kg/h | 15kW | 60mm |
| 70 | 180-250kg/h | 18.5kW | 70mm |
| 80 | 300-350kg/h | 27kW | 80mm |
| 90 | 400-450kg/h | 32kW | 90mm |
The difference between flat die pellet machine and animal feed extruder machine
The flat die feed pellet machine and this type of animal feed extruder machine are both machines for producing feed pellets for animals. The key difference between the two lies in their different working principles.
Flat die feed pellet machine mainly presses feed raw materials into pellets. Its core lies in the coordinated work of the pressing rollers and the falt die. Through the special shape of the die and the pressing effect of the press rollers, the material generates shear force and forms pellets. This processing way does not require the addition of water. The pellets are deeply matured inside, with a smooth surface and high hardness, and can be stored for a long time. The flat die feed pellet machine has a simple structure, easy operation, high production efficiency, and can meet the needs of large-scale feed processing.
The working principle of animal feed extruder is completely different. It mainly uses extrusion, heating and shearing to make the material instantly mature under high temperature and high pressure, and then suddenly reduce the pressure and temperature to make the volume of the material expand rapidly to form extruded material. This processing method can gelatinize the starch in the feed and denature the protein, thereby improving the digestibility and nutritional value of the feed. The structure of the feed extruder is relatively complex, including the feeding system, extrusion chamber, cooling system, cutting system, etc., which can realize continuous production.
From the perspective of the finished product form, the feed pellets produced by the flat die feed pellet machine is in a dense granular shape, which not only tastes good but is also easy to store and transport. The feed pellets produced by the animal feed extruder is in a porous, loose extruded shape, which is easier for animals to digest and absorb.
From the perspective of the moisture content of the finished product, the moisture content of the expanded material is much lower than that of the granular material.
From the perspective of nutritional loss, the feed produced by the feed extruder has a slight loss of protein after being treated with high temperature, high pressure and high humidity, while the feed pellets produced by the flat die pellet machine has basically no loss except for a certain loss of vitamins.
The choice of feed processing equipment should be based on actual needs and budget. If you need to process easily digestible feed, you can choose a feed extruder; if you need to make feed that is easy to store and transport, you can choose a flat die pellet machine.
